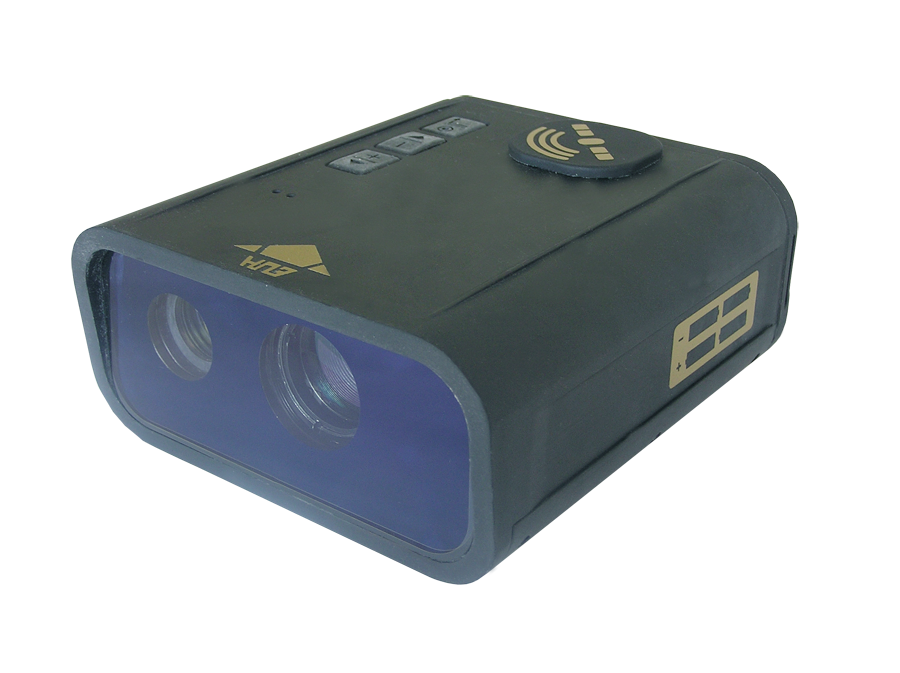

LDM-2VK
PRE-PRODUCTION MODEL

Laser rangefinder LDM-2VK measures distance as well as determines ambient temperature and atmosphere pressure, elevation of the target and its coordinates in the satellite systems GLONASS and GPS that allows the rangefinder to perform the following functions:
-Calculation of corrections during the shooting from different types of hunting weapon. For calculation of corrections the following indices are considered: distance to the target, elevation of the target, ambient temperature and atmosphere pressure, direction and speed of wind, ballistic factor, initial velocity and weight of bullet, caliber, pitch and direction of the rifling in the bore, sight elevation over the barrel.
- Target coordinates determination.
- Determination of the target speed.
- Setting of the rangefinder according to the type of weapon, bullet, satellite system, and also regulating of the display brightness and auto switching off function.

Specifications Distance measurement range, m 4000 м Magnification, x 6x Field of view, deg 6,5о Entrance pupil, mm 30 Exit pupil, mm 5 Eye relief, mm 20 Resolution limit, ” 10 Diopter adjustment, d ±3 Accuracy of temperature measurement, ºC ±2o Accuracy of elevation of the target measurement, deg ±2o Accuracy of distance measurement, m ±5 Temperature measurement range, ºC from -40 to +50 Elevation of the target measurement range, deg from -30º to +30º Average pace of rangefinder work with capability of repeat measurement every 3 s, measurement/min 6 Laser wavelength, µm 1.067 Power supply voltage, V 5±1 Power supply 4xAA Number of distance measurements without recharging of the power supply 200 Overall dimensions, mm 180х100х50 Weight, g 1350
