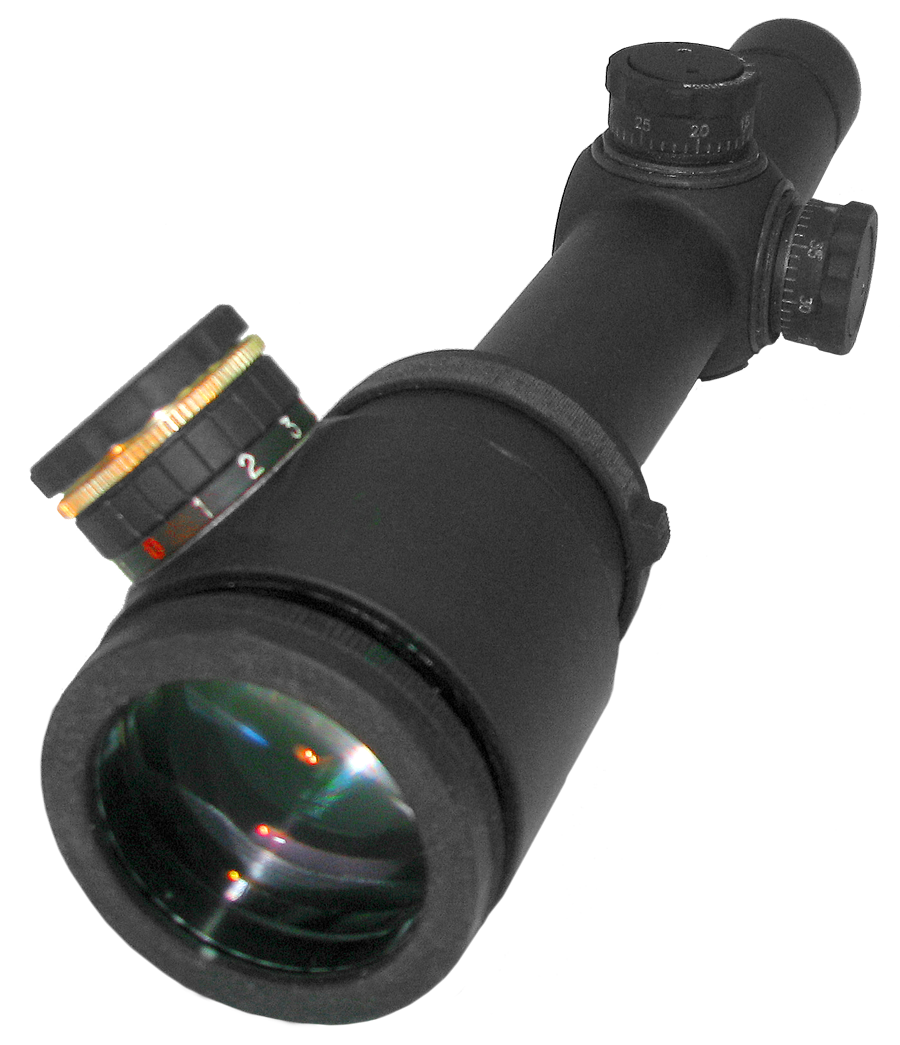

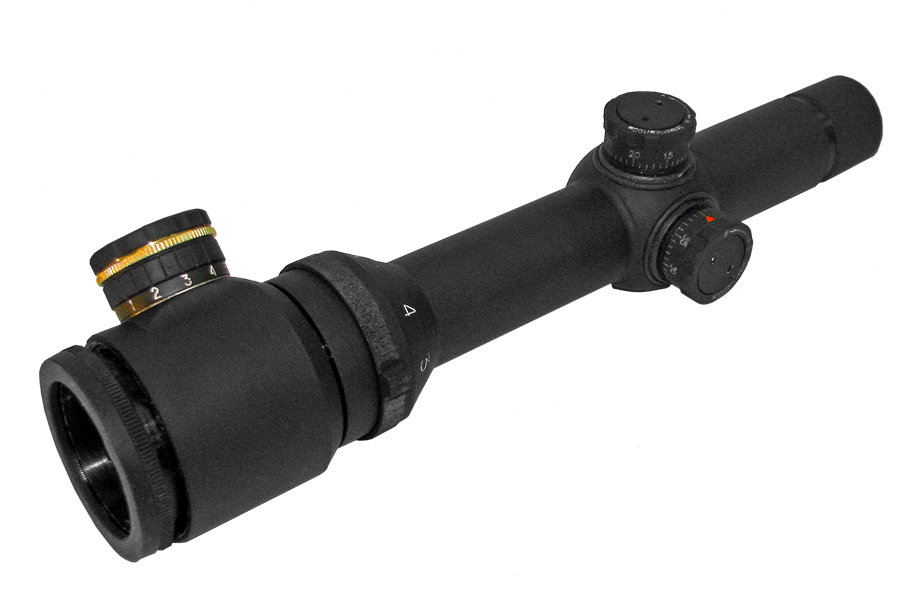

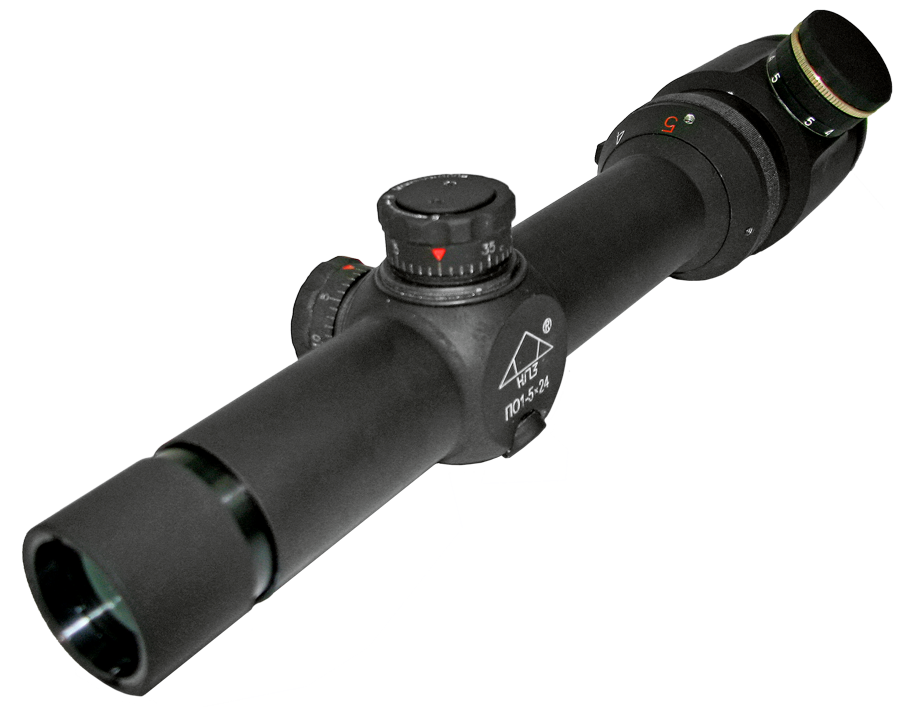

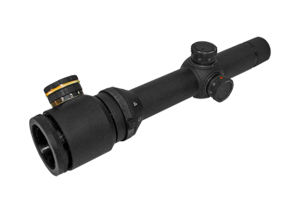

PO 1-5x24
PRE-PRODUCTION MODEL
Optic sight with variable magnification
The sight is intended for terrain observation and aiming with hunting weapon in the daytime.
|
| |
|
Magnification abjustment range, x |
from 1 to 5 |
|
Field of view, o |
|
|
Exit pupil, mm |
|
|
Objective lens diameter, d |
24 |
|
Diopter abjustment, d |
±3 |
|
Height of optical axis of the sight, mounted on the "Picatinny" rail, relative to the barrel axis, mm |
50 |
Reticle illumination |
1xCR2032, 3V |
|
Division value of abjustment |
10 mm/100 m |
|
Weight, kg |
0,45 |
|
Reticle type |
Mil-dot |
|
Bore diameter, mm |
30 |
