PT1
PRE-PRODUCTION MODEL

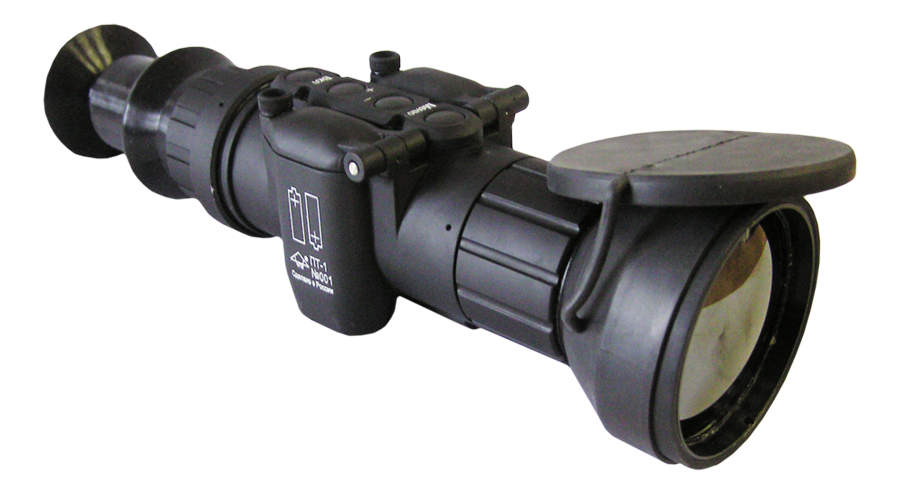

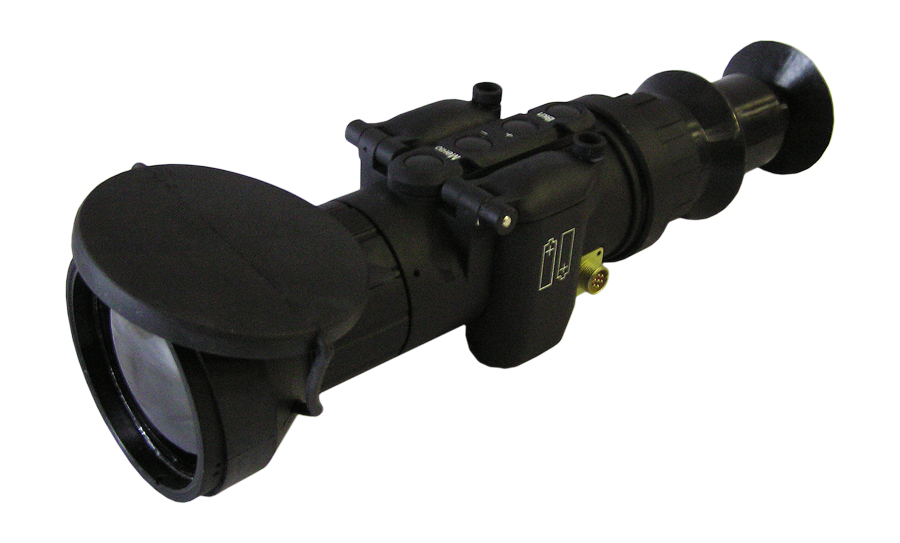

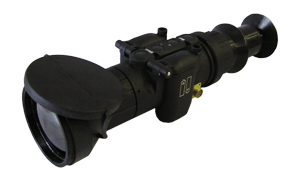

Thermal Imaging Sight
Thermal imaging modular sight for hunting rifles is based on microbolometer matrix and intended for observation and aimed fire from hunting rifles at daylight and night time and under poor visibility conditions.
FEATURES
- Universal seat for different brackets for mounting on the weapon.
- Storage of ballistic parameters for different kinds of weapon, different kinds of reticles.
- Power save operation mode (pressure of eyeshield triggers switching on of the microdisplay and unlocking of eyeshield switches it off).
|
| ||
|
PT1-1 |
PT1 | |
|
Magnification, x |
2,6 |
4,3 |
|
Focal length, mm |
60 |
100 |
|
Field of view, degrees |
9,1х6,9 |
5,5х4,1 |
|
Entrance pupil, mm |
46 |
72 |
|
Entrance pupil, mm |
8 |
8 |
|
Detection range, m |
1800 |
2500 |
|
Recognition range, m |
600 |
1000 |
|
Minimum focusing distance, m |
15 |
25 |
|
Eye relief, mm |
70 |
70 |
|
Diopter adjustment, d |
±5 |
±5 |
|
Weight, kg |
1,7 |
1,9 |

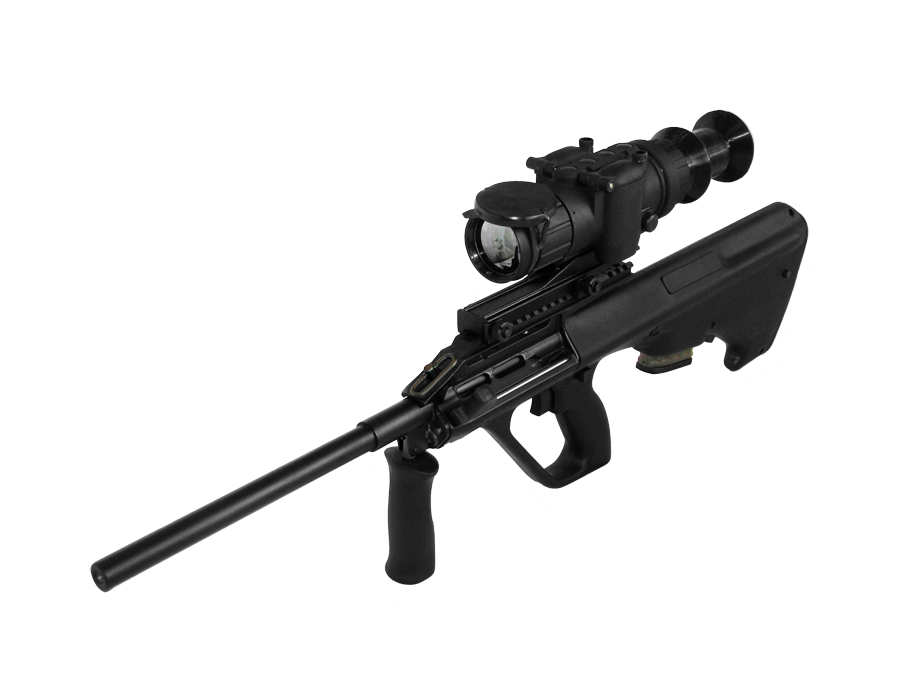

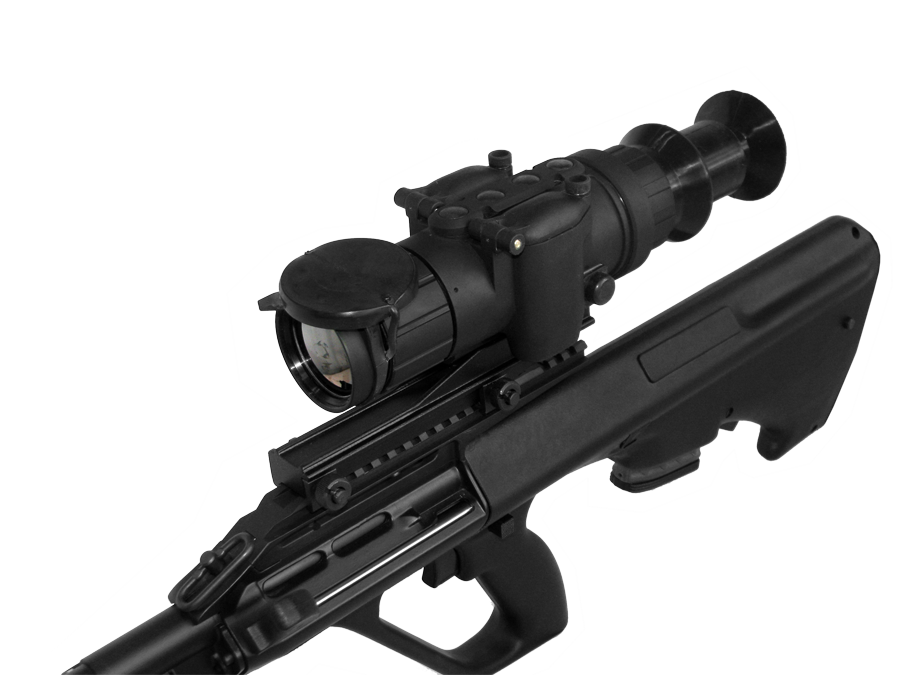

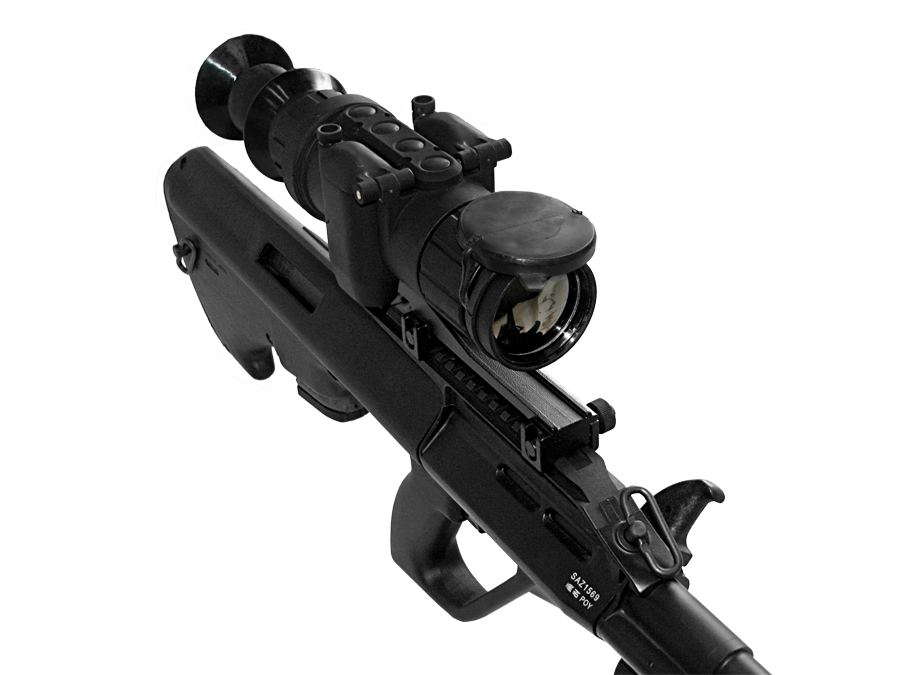

Kind on the weapon:
|
|
|
