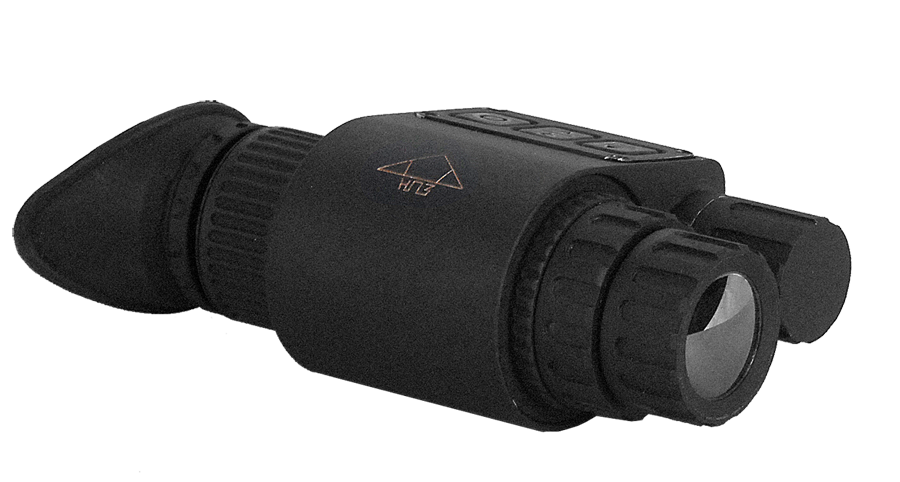

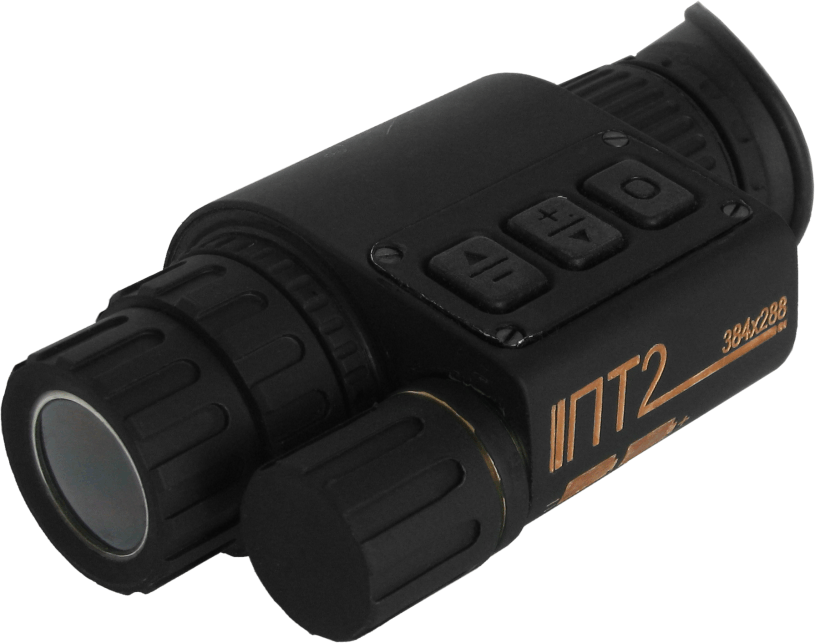

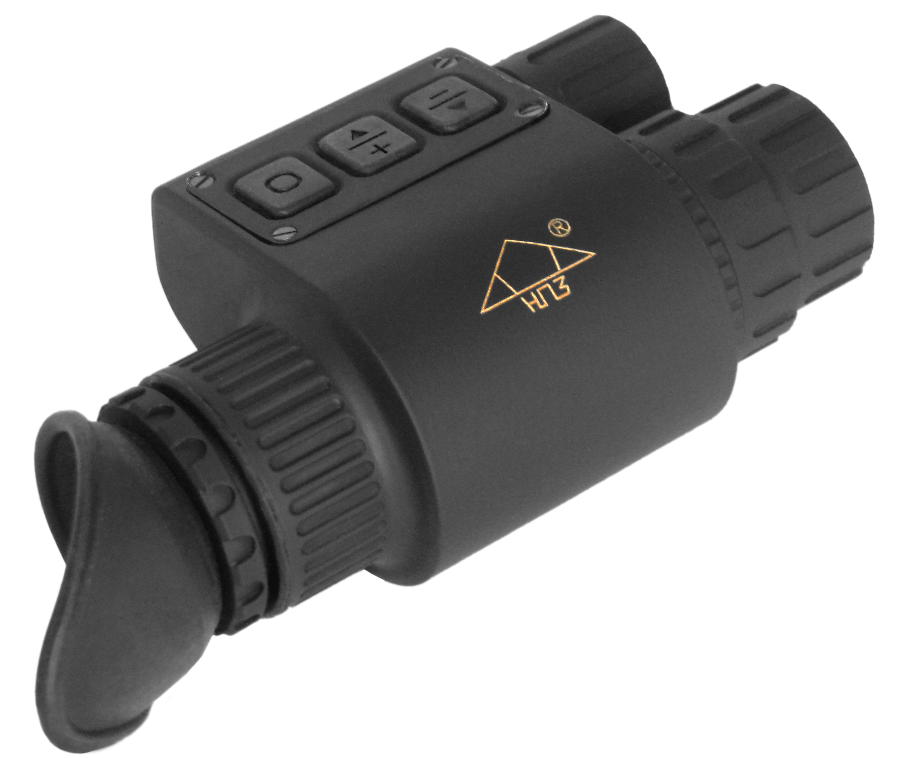

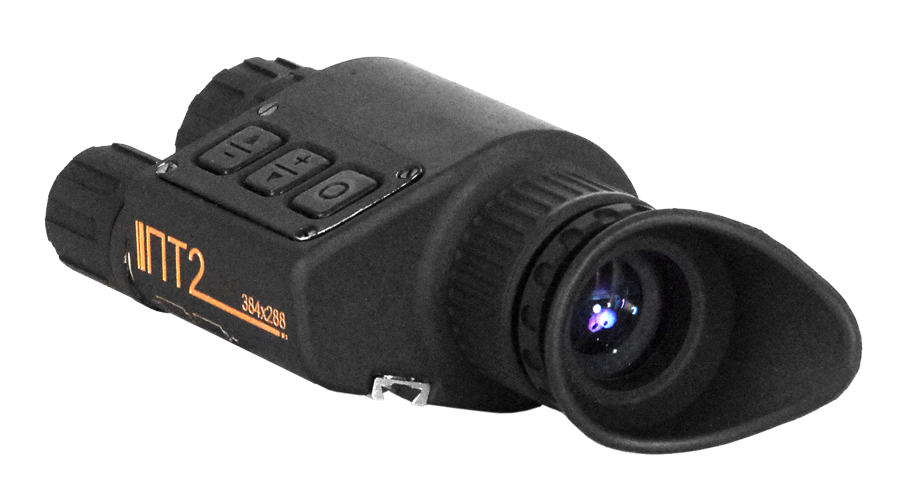

PT2
Thermal imaging monocular
Thermal imaging monocular PT2, based on microbolometer matrix, is intended for observation, terrain orientation under poor weather conditions (smog, mist, etc.).
FEATURES
- two devices can be combined into binocular;

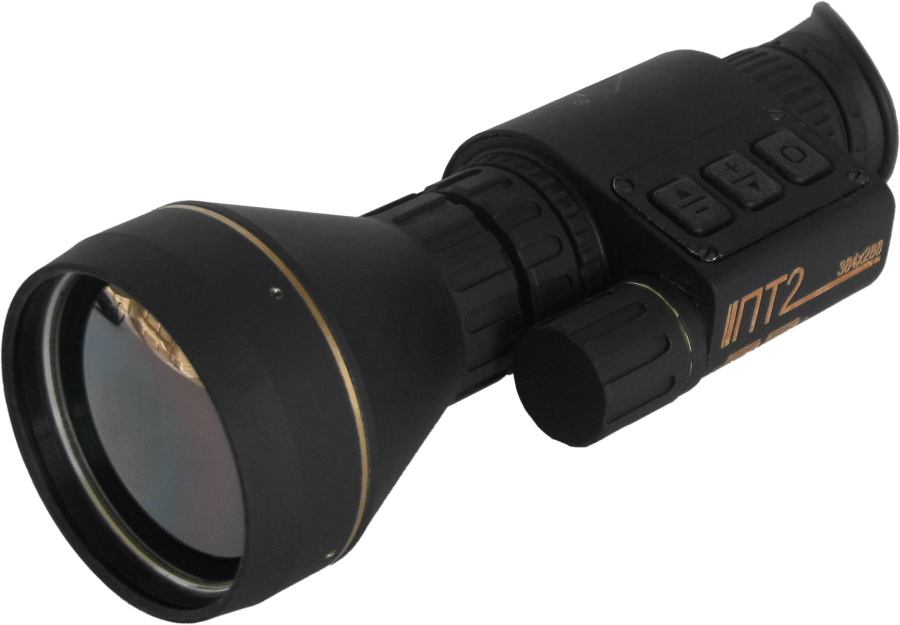

- provided with removable objective lenses 3x and 5x;
- can be powered from the external power supply of 12V;
- USB port.
|
| ||
Image format, pxl |
384x288 |
160x120 |
|
Field of view, deg |
22.6x17 |
10x7.3 |
|
Thermal sensitivity, °C |
0.20 |
|
|
Detection range (human figure), m |
450-500 |
|
|
Spectral response, µm |
8-14 |
|
|
Objective focal length, mm |
24 |
|
|
Focus range, m |
0.25-∞ |
|
|
Display, pxl |
800x600 |
|
|
Eye relief, mm |
18 |
|
|
Diopter adjustment, d |
±5 |
|
|
Exit pupil, mm |
8 |
|
|
Power supply |
2xCR123A (DL123A) |
|
|
Operation time, hours |
4 |
|
|
Weight (without headset and batteries), g |
340 |
|
|
Overall dimensions (height-width-length), mm |
52x75x120 |
|
