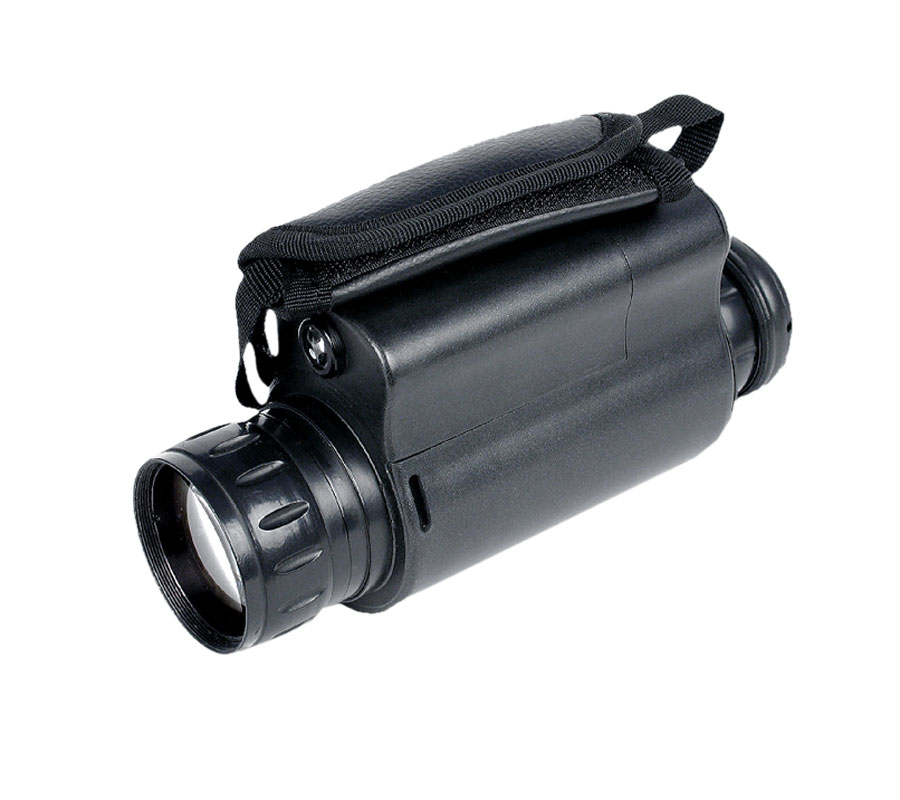

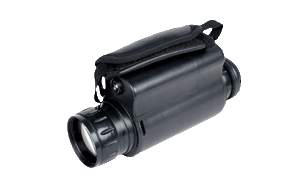

HELIOS-05
Night Pocket Scope
It is intended for terrain observation and reconnaissance under natural starlight and moonlight illumination or using built-in infrared illuminator. The image intensifier is protected with high-light cutoff circuit.
FEATURES:
- light filter for high light conditions;
- standard photo lens compatible (M42x1, back focal length 45.5 mm);
- soft rubber eyeshield;
- eyepiece adapter kit to photo- and video-cameras provided with light filter threads М49х0.75 and М37х0.75;
- rigid waterproof design;
- operating temperature range from - 10 (-35°) to 40° С, low temperature is limited by type of battery.
|
Specifications | ||
| Identification range for man sized target under natural illumination 5х10-2 lx | 150 | |
| Magnification, fold | 3 | |
| Field of view, deg | 10 | |
| Focal length, mm | 90 | |
| Eyepiece diopter adjustment range, d | ±3 дптр | |
| Supply voltage, V | 3 | |
| Power supply | 2xAA | |
| Continuous operation time under standard environmental conditions at T= +20 ±5°С, w/o IR illuminator/with IR illuminator | 25/10 | |
| Overall dimensions , mm | 190x95x288 | |
| Weight, kg | 0.5 | |
