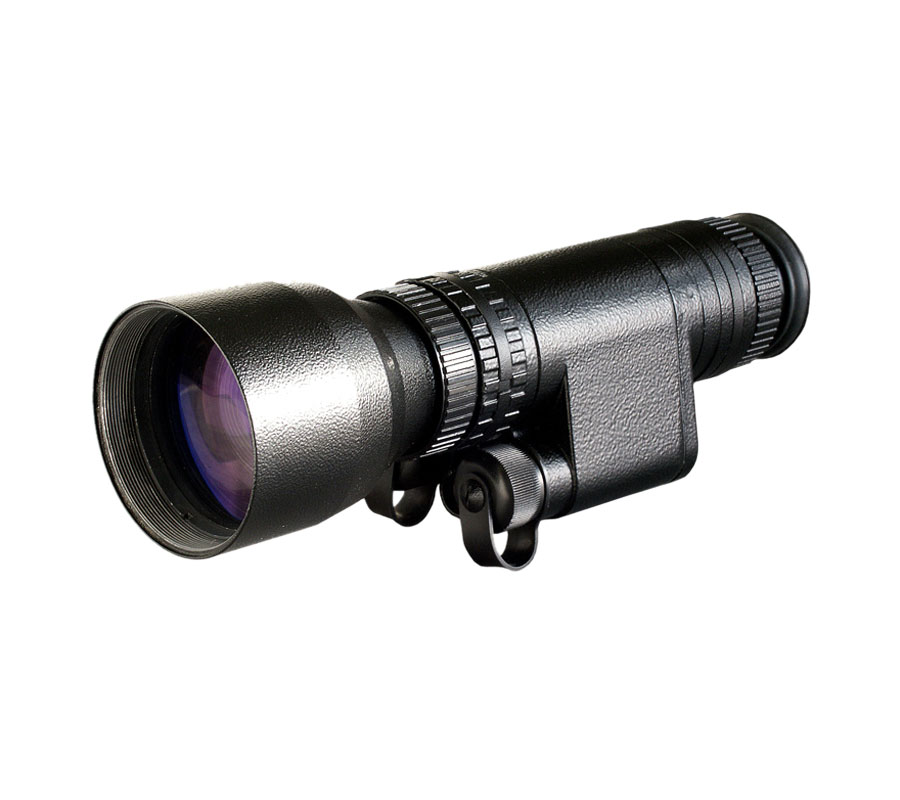

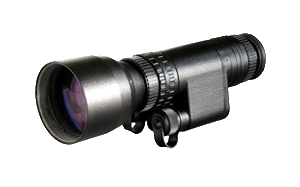

MPN-8KM
Modular night vision device
For terrain observation and reconnaissance under natural starlight and moonlight illumination or using built-in infrared illuminator. The device is provided with mount for removable gripe or adapter to all kinds of hunting weapons. The image intensifier is protected with high-light cutoff circuit.
Features:
- generation 2+ image intensifier;
- automatic screen brightness control circuit;
- high-light cutoff protection circuit;
- built-in IR illuminator;
- eyepiece adapter kit to photo and video cameras provided with light filter thread M37x0.75; M40.5x0.5; M49x0.75; M52x0.75; M55x0.75; M58x0.75; M82x1;
- removable light filter for high light conditions;
- soft rubber eyeshield;
- adapter for mounting on telescope with fitting place of dia 1.25";
- threaded socket to photographic tripod;
- operating temperature range from -50°C to +50°C,
low temperature is limited by type of battery
|
Specifications | ||
| Focal lenght, mm | 27 | |
| Magnification, x | 1 | |
| Field of view, deg | 36 | |
| Resolution under illumination 5x10-3 lx, cy/mr | 0.7 | |
| Diopter abjustment range, d | ±5 | |
| Focus range, m | 0.25-? | |
| Power supply voltage, V | 3 | |
| Batteries | AA 2, batteries | |
| Maximal consumption current at T=20±5oC, mA, without illuminator / with illuminator | 25 / 120 | |
| Overall dimensions, mm | 169х67х80 | |
| Weight, kg | 0.6 | |
