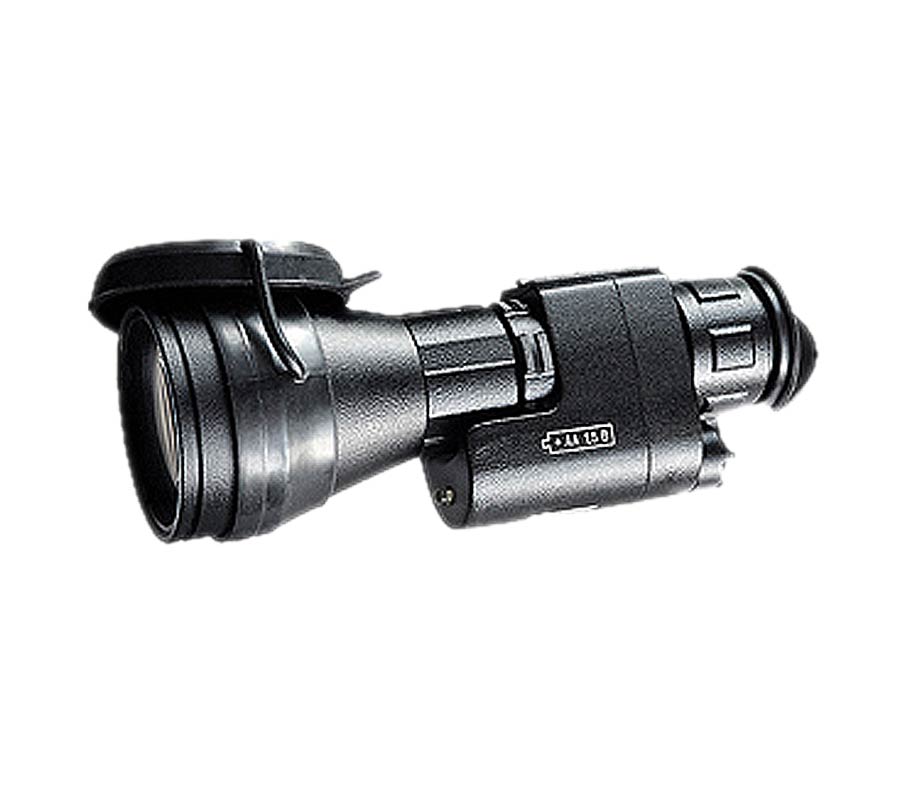

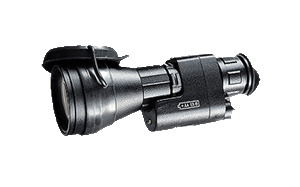

PN-16K-3x
Night vision device
Night Vision Monocular PN-16K is intended for operation at night under natural illumination and in the complete darkness with the infra-red illuminator switched on.
- generation 2+ or 3 image intensifier;
- automatic screen brightness control circuit;
- high-light cutoff protection circuit;
- built-in IR illuminator;
- changeable lenses F27, F80;
- removable diaphragm cup for high light conditions;
- soft rubber eyeshield;
- interpupillary abjustment;
- illuminator operation indication;
- battery state indication;
- flipping-up head mount;
- vertical and horizontal (possibility to remove the monocular from one eye to another) abjustment of the monocular on mask;
- rigid and watertight design;
- operating temperature range from -50°C to +50°C, low temperature is limited by type of battery
|
Specifications | ||
| Focal lenght, mm | 80 | |
| Magnification, x | 3 | |
| Field of view, deg | 10 | |
| Resolution under illumination 5x10-3 lx, cy/mr | 2.6 | |
| Diopter abjustment range, d | ±3 | |
| Focus range, m | 10-? | |
| Power supply voltage, V | 1.5 | |
| Batteries | AA battery | |
| Maximal consumption current at T=20±5oC, mA, without illuminator / with illuminator | 80 / 200 | |
| Overall dimensions, mm | 80х70х220 | |
| Weight, kg | 0.8 | |
