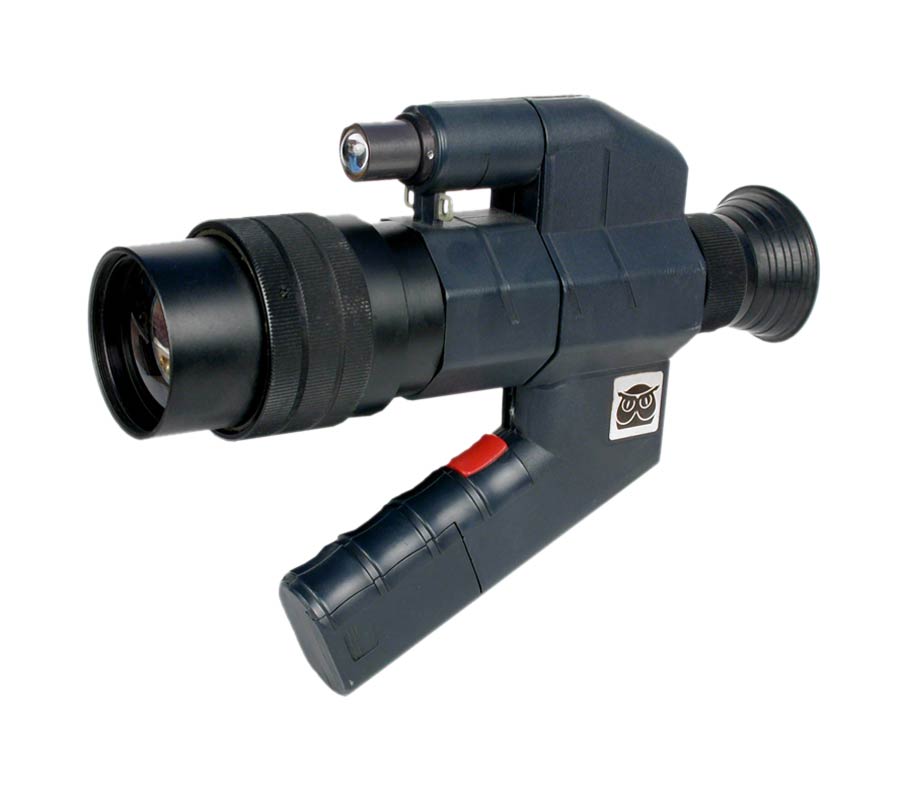

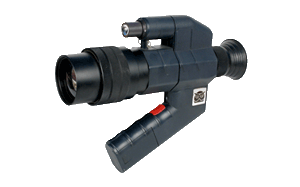

Night Monocular

Monocular is designed for night viewing in moonlight conditions. The built-in IR-illuminator ensures the viewing in full darkness (mines, basements, caves).

FEATURES:

automatic high light protection
removable blend
light filter for day operation
interchangeable lens
photo camera adapter
diopter adjustment
rubber eye shield

Specifications
Visual range, m, Quarter moon light conditions/Full dark with IR-illuminator	150/75
Generation of image intensifier	0
Magnification, fold	2.3
Field of view, deg	13
F-number of objective lens	2
Effective focal length of objective lens, mm	100
Back focal length of objective lens, mm	45.5
Lens adapter	M42x1
Light filter adapter	M52x0.75
Focus range	1.5-?
Diopter adjustment, diopter	+4
Exit pupil, mm/TD>	5
Optical power of IR-illuminator, mW	4
Spectral range of IR-illuminator, um	0.81-0.88
Beam divergence of IR-illuminator, deg	4-14
Continuous operation time, h, monocular/monocular with IR-illuminator	50/10
Batteries	AA x 2
Overall dimensions , mm	240x66x190
Weight, kg, of the device/of the tripod	0.95
