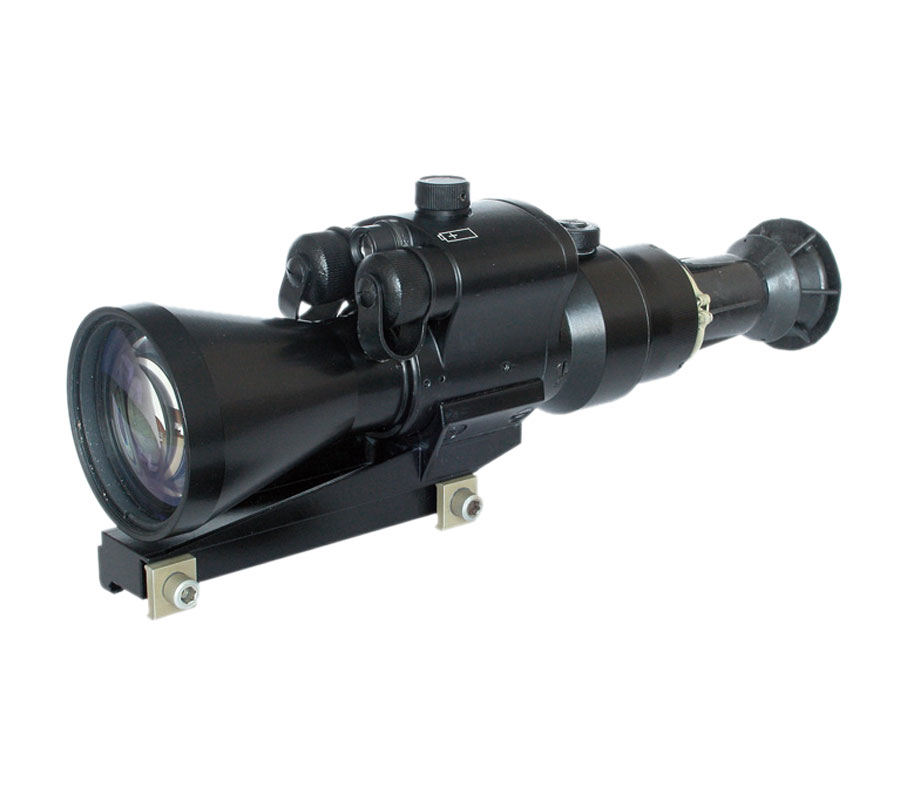

PN-17K
Night Vision Sight
The night vision sight is intended for aiming such weapons as “Verp”, “Tiger”, “Tiger-1”, “Tiger-9”, “Tiger1-9”, “Saiga”, “Saiga-5.6”, “Los-7”, “Bars-4”, “Bars-4-1”, “Record”, as well as weapons having a Piccatiny rail and hunting weapons having mounts for standard prism “SP”, for example “Browning”.
The sight can be used at a temperature ranging from 40° to -40°C.
|
Specifications | ||
| Range of visibility, m | 300 | |
| Effective lens diameter, mm | 65 | |
| Magnification, x | 3.7 | |
| Field of view, deg | 10 | |
| Focal ratio | 1:1.5 | |
| Exit pupil, mm | 8.5 | |
| Eye relief, mm | 70 | |
| Diopter adjustment, diopter | -4 to +5 | |
| Step of reticule adjustment, mm/100 m | 35 | |
| Power supply voltage, V | 2.4-3.6 | |
| Operation time without recharging a battery, h, with illuminator on/with illuminator off | 3.5/16 | |
| Weight, kg | 1.1 | |
| Overall dimensions, mm | 302x67x100 | |
Used together with:
