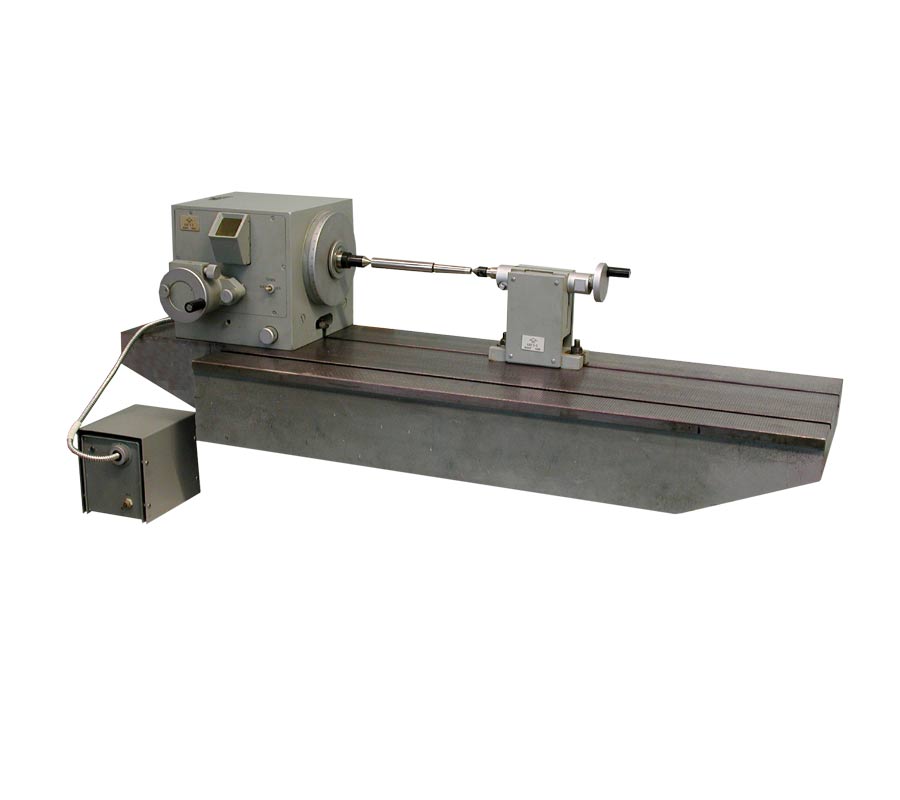

ODGE-20
INDEX HEAD
For angular measurement, calibration and orientation in: milling, drilling, marking, scale making, calibration.
For angular measurement, calibration and orientation in:
- milling
- drilling
- marking
- scale making
- calibration
|
Specifications | ||
| Measuring range, deg | 0 - 360o | |
| Spindle tilts range, deg | 0-90o | |
| Max diameter of load, mm | 300 | |
| ODGE-5 | 5 | |
| ODGE-20 | 20 | |
| Max length of load, mm, small bed/large bed | 600/1000 | |
| Overall dimensions, mm | ||
| head | 280х395х250 | |
| tailstock | 270х85х195 | |
| small bed | 1320х385х230 | |
| large bed | 1825х385х275 | |
| Weight, kg, head/tailstock/small bed | 60/15/160 | |
| large bed lamp | 10 | |
